Goodman Furnace Model Number : GMVM971005CN

If you are looking for a residential

Goodman Furnace GM9S96 Specification Sheet Click

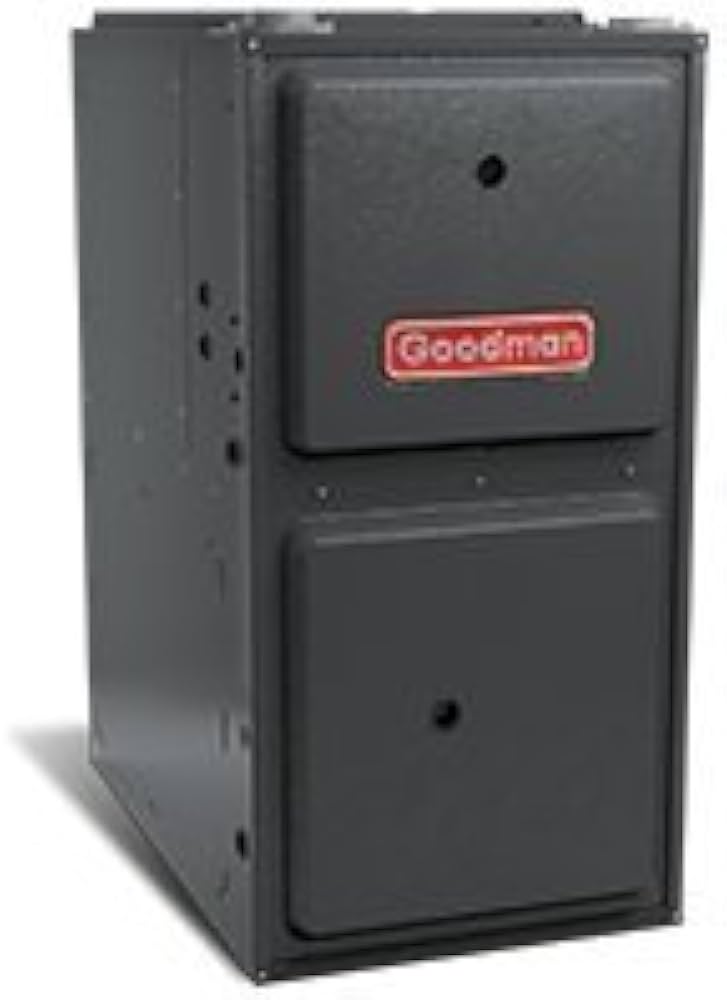

FURNACE: GMVM971005CN

Specifications:

1. Heavy-duty aluminized-steel tubular heat exchanger
2. Efficient and quiet variable-speed Blower
3. Integrated communicating ComfortBridge™ technology
4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud™ phone and tablet application
5. Stainless-steel sloped secondary heat exchanger
6. Silicon Nitride igniter
7. Dual 7-segment display
8. Color-coded low-voltage terminals.
9. Two-Stage gas valve
10. All models comply with California 40 ng/J
11. AHRI Certified, ETL Listed
12. Energy Star
13. Furnace control board with self-diagnostics and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers

Warranty:

Standard warranties apply.

Standard parts, residential: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, multi-family: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Standard parts, commercial: ALL PARTS - 5 YEARS PARTS

HEAT EXCHANGER - 20 YEARS PARTS

Registered parts, residential: ALL PARTS - 10 YEARS PARTS

HEAT EXCHANGER - 79 YEARS PARTS

HEAT EXCHANGER - LIFETIME PARTS

HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, multi-family: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

Registered parts, commercial: HEAT EXCHANGER - 20 YEARS PARTS

ALL PARTS - 10 YEARS PARTS

PRODUCT ATTRIBUTES:

AFUE: 97

Brand: Goodman

Cabinet Features:

1. Multi-position installation: upflow, horizontal left or right
2. Certified for direct vent (2-pipe) or non-direct vent (1 pipe)
3. Easy to install top venting with optional side vent
4. Convenient left or right connection for gas and electrical service
5. Cabinet air leakage (Qleak) less than or equal to 2%
6. Fully insulated heat exchanger and blower section
7. Bottom or side return air applications
8. Heavy-gage steel cabinet with durable finish

Class: Gas Furnace

Unit Depth: 29

Unit Height: 34-1/2

Unit Width: 21

Family Description: ComfortBridge™-Compatible Modulating Variable-Speed ECM Gas Furnace up to 98% AFUE

High-Fire Input Capacity: 100000

High-Fire Output Capacity: 97000

Min. Circuit: 15.4

Model Efficiency: 0.97

Motor Speed Type: Variable Speed ECM

NOX Burner Type: Low NOx

Power Frequency: 60

Power Phase: 1

Power Voltage: 115

Product Benefits:

1. High reliability and quality
2. Airflow system gently ramps up or down according to heating or cooling demand and provides better comfort
3. Faster condensate water drainage and no unit water leakage
4. Auto-configure for each installation
5. Capable of using non communicating single-stage thermostats
6. Durable and long igniter life
7. Self-diagnostic control board with constant memory fault code history output
8. Provisions for electronic air cleaner and humidifier
9. Energy efficient and precise comfort
10. Lower NOx emission
11. Meets the performance requirements for AHRI certification and complies with ETL North American safety standards.
12. Tax Credit
13. Easy Connection for EAC and Humidifier

Category: Gas Furnace

Family GMVM97

Prop65 Label Required: TRUE

Unit Type: Indoor

DOCUMENTS:

SM-RS6621008.pdf (daikincloud.io)
